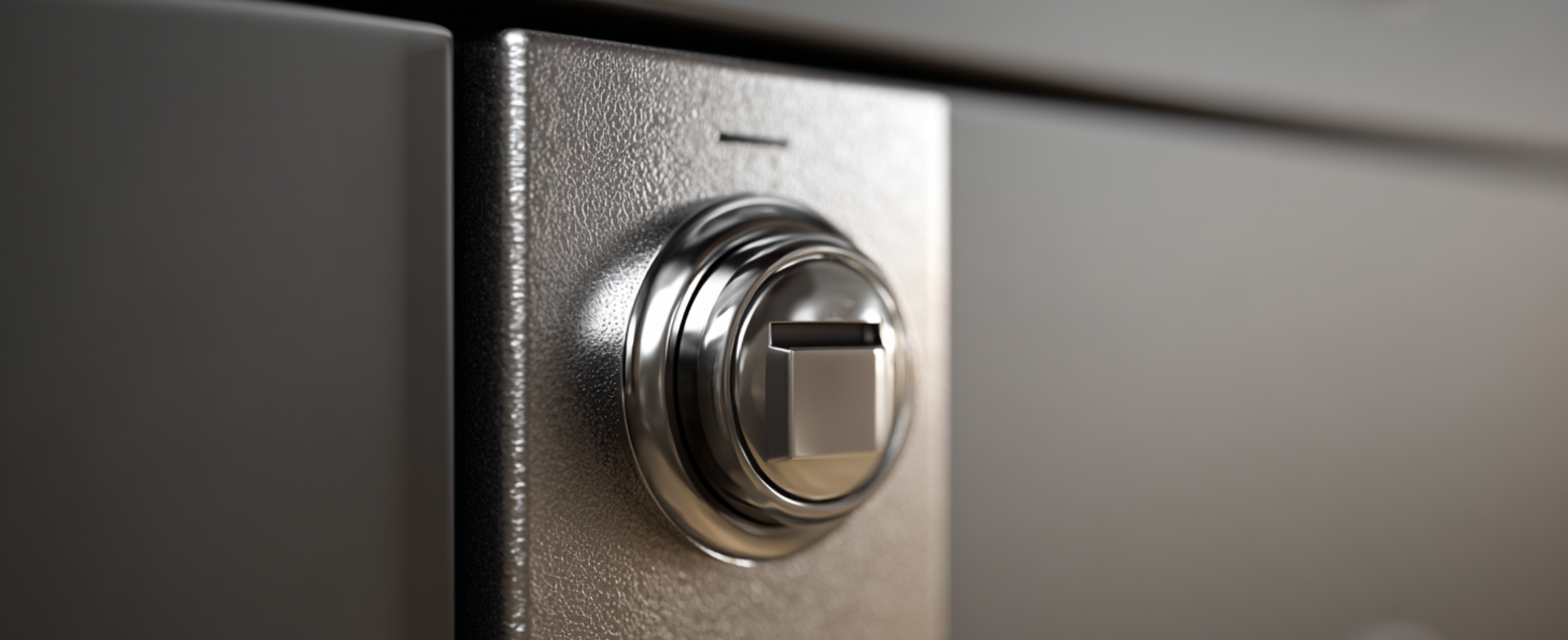

Furniture lock: Definition, selection and modern alternatives for businesses

A cabinet lock serves as a security element for cabinets, lockers, drawers, or display cases, protecting their contents from unauthorized access. Selecting the right system depends largely on the furniture type and specific security requirements. Companies today can choose from various options: from classic mechanical solutions such as cylinder cam locks, mortise or surface-mounted variants to electronic systems with RFID, PIN code, or smartphone control. The advantages of modern digital solutions lie especially in central administration, app-based use, and seamless integration into existing access management systems, indispensable properties for professional environments such as office buildings, public administration, residential complexes, educational institutions, or fitness studios.

Why the topic is more relevant than ever

Managing conventional keys creates significant effort in companies, ties up valuable resources, and often leads to security gaps. The limitations of mechanical systems become particularly apparent in environments with frequent user changes, high staff turnover, or multiple locations. Digital cabinet locks with mobile access (via smartphone or transponder) and cloud-based management offer decisive advantages here: access rights can be granted or revoked within seconds, all usage processes remain traceable, and the risk of lost master keys is eliminated entirely.

The importance of intelligent cabinet locks is also growing in parallel with the increasing flexibility of modern work environments. Hybrid working models with desk sharing and activity-based working require dynamic access solutions for personal storage. At the same time, regulatory requirements for data protection and information security are tightening, directly impacting the protection of documents, electronic devices, and other sensitive assets. Those who opt for future-proof systems today avoid costly and time-consuming system changes in the coming years.

Typical use cases and requirements

The possible applications for cabinet locks are extremely diverse, from personal lockers to tool cabinets and medication storage through to material dispensing systems. When selecting a suitable solution, four key questions should always be answered:

• What exactly needs to be protected? (value, confidentiality, compliance relevance)
• How will the furniture be used? (by individuals, rotating users, in self-service)
• Under what environmental conditions? (humidity, dust, public access)
• How will administration be handled? (centralized, decentralized, remote)

In professional environments, additional requirements come into play, including complete auditability of all accesses, GDPR-compliant data processing, multi-tenant capabilities for shared resources, scalability for growing demand, and seamless integration into existing access and property management systems.

Industry-specific scenarios

Healthcare
In hospitals and care facilities, cabinet locks secure sensitive areas such as medication cabinets, patient records, and medical equipment. Traceable access logs are particularly important here to document regulatory compliance and prevent unauthorized access to critical substances.

Educational institutions
Schools and universities use cabinet locks for lockers, storage systems for equipment, and special teaching material cabinets. The challenge lies in managing temporary access permissions for students who need access only during specific courses or semesters.

Logistics and manufacturing
In warehousing and production, tool cabinets, material dispensing points, and special equipment depots are secured with robust cabinet locks. The focus here is on operational safety and complete documentation of all material withdrawals.

Overview of cabinet lock types

Different cabinet lock types vary in design, mounting method, and operation. Careful selection avoids costly retrofits later and lowers long-term operating costs.

Cam lock (cylinder cam lock)

The classic for cabinets and drawers works on a simple principle: a locking cylinder actuates a cam that engages behind the edge of the furniture. The advantages are obvious: cost-effective, easy to retrofit, available in various hole diameters (typically 16, 19, or 22 mm) and with different cam lengths. Especially suitable for office, storage, and archive furniture, mailbox systems, or tool cabinets.

Cam locks are available in different quality levels, from simple systems with limited key combinations to high-grade versions with patented key profiles. Installation involves inserting the cylinder into the furniture front, with a nut securing it from the inside. Depending on the furniture construction, the cam can be mounted at different angles relative to the key position, enabling flexible adaptation to different furniture geometries.

Mortise cabinet lock

In this variant, the lock is installed fully flush within the furniture front. This enables a clean, flush appearance and protects the locking mechanism inside the furniture material. Mortise locks are particularly suitable for high-quality furnishings and are used on rebated doors as well as on glass or metal doors with appropriate lock cases. Typical applications include designer furniture, display cases, and representative cabinet systems.

Mortise locks generally offer higher mechanical stability than simple cam locks. They consist of a lock case with an integrated cylinder and a bolt that engages a strike plate on the opposite side when operated. Installation requires precise milling and is therefore mostly part of the original furniture planning. For representative rooms or premium office equipment, mortise locks are often the preferred choice despite higher installation effort because they are visually more discreet while offering more security.

Surface-mounted cabinet lock

A surface-mounted lock is installed directly on the inside of the door or front. This variant is particularly suitable for thin materials where deeper milling is not possible, and is ideal for quick and uncomplicated retrofits. Typical applications include existing furniture, thin panel materials, and temporary security solutions.

The key advantage of these locks lies in simple installation without complex milling. The locking mechanism is operated via a simple bore in the furniture front, while the actual lock body is fixed on the inside. Surface-mounted locks have proven especially useful in environments where changes are frequent or where not the furniture itself, but its contents represent the primary value.

Rod/multipoint lock

This variant is designed specifically for tall doors and enables locking at multiple points. The cylinder moves rods up and down, an ideal solution for double doors. Typical applications include filing cabinets, equipment cabinets, and lockers.

Rod locks provide increased security thanks to their multipoint locking. They consist of a central lock that, when operated, moves vertical rods up and down. These engage with corresponding strike plates at the top and bottom of the furniture. Rod locks are recommended especially for tall cabinets with valuable or sensitive contents or for areas with higher security requirements. The multipoint locking effectively prevents prying the cabinet doors, an inherent risk with simple single-point locks.

Combination and code locks (mechanical/electronic)

These locks are operated via a numeric code, either mechanically without a battery or electronically with a PIN, often in combination with RFID technology. They are particularly suitable for lockers in gyms, schools, or coworking spaces, anywhere that the administration of physical keys would be impractical.

The essential advantage of combination locks is the absence of physical keys. Mechanical variants work with dials or push buttons and require no power. Electronic models allow more complex combinations, more frequent code changes, and often provide additional logging functions. Combination locks are particularly practical in environments with many different users or frequently changing access permissions. Modern electronic versions can also work with temporary codes that become invalid after a single use or after a defined period.

RFID/transponder and smartphone locks (electronic)

These advanced systems enable contactless access via card/transponder or via smartphone using Bluetooth Low Energy. The benefits are clear: central management of all access rights, time-limited permissions, no physical key circulation, and comprehensive audit logs. This technology is particularly suitable for modern office environments, residential complexes, hotels, healthcare facilities, and logistics companies.

These locks represent the latest generation of furniture security technology and offer maximum flexibility in managing access rights. They can be integrated seamlessly into overarching access management systems. RFID locks operate on various frequency ranges such as LF (low frequency), HF (high frequency), or UHF (ultra-high frequency), each providing specific advantages in terms of range, data security, and cost efficiency.

Smartphone-based solutions use modern communication technologies such as Bluetooth Low Energy (BLE) or Near Field Communication (NFC). They stand out for high user convenience and advanced security features, including end-to-end encryption and biometric authentication. A key advantage of these systems is the ability to update access permissions over the air, making changes effective practically in real time.

Cabinet locks for cupboards: How to optimally secure doors and drawers

Cabinets pose special demands on locking systems, be it due to double-leaf doors, different material thicknesses, or changing user groups. For professional environments, a combination of the following elements has proven itself:

• robust cam locks or rod locks for double-leaf doors
• programmable electronic locks with PIN/RFID/smartphone for areas with rotating users
• a central access management system that also includes cabinet locks

Ease of use is crucial: in high-turnover contexts, such as locker installations, physical keys are disadvantageous. Digital systems excel here with the ability to grant time-limited permissions via app or transponder.

The optimal mounting position

Correct placement of a cabinet lock is crucial to its effectiveness. For drawers, the lock should ideally be mounted centrally on the front. For cabinet doors, installation typically takes place on the side opposite the hinges to maximize leverage.

For double-leaf doors there are various approaches:

• Active/inactive leaf system: One door leaf (active leaf) contains the actual lock, while the second leaf (inactive leaf) is secured by a flush bolt.
• Rod lock with central locking: One lock actuates rods that secure both leaves at the top and bottom.
• Dual-lock solutions: Each leaf receives its own lock, which offers maximum security but also increases administrative effort.

During installation, ensure sufficient distance from edges and potential obstructions to guarantee smooth operation.

Adapting to special furniture constructions

Modern furniture designs often require special locking solutions:

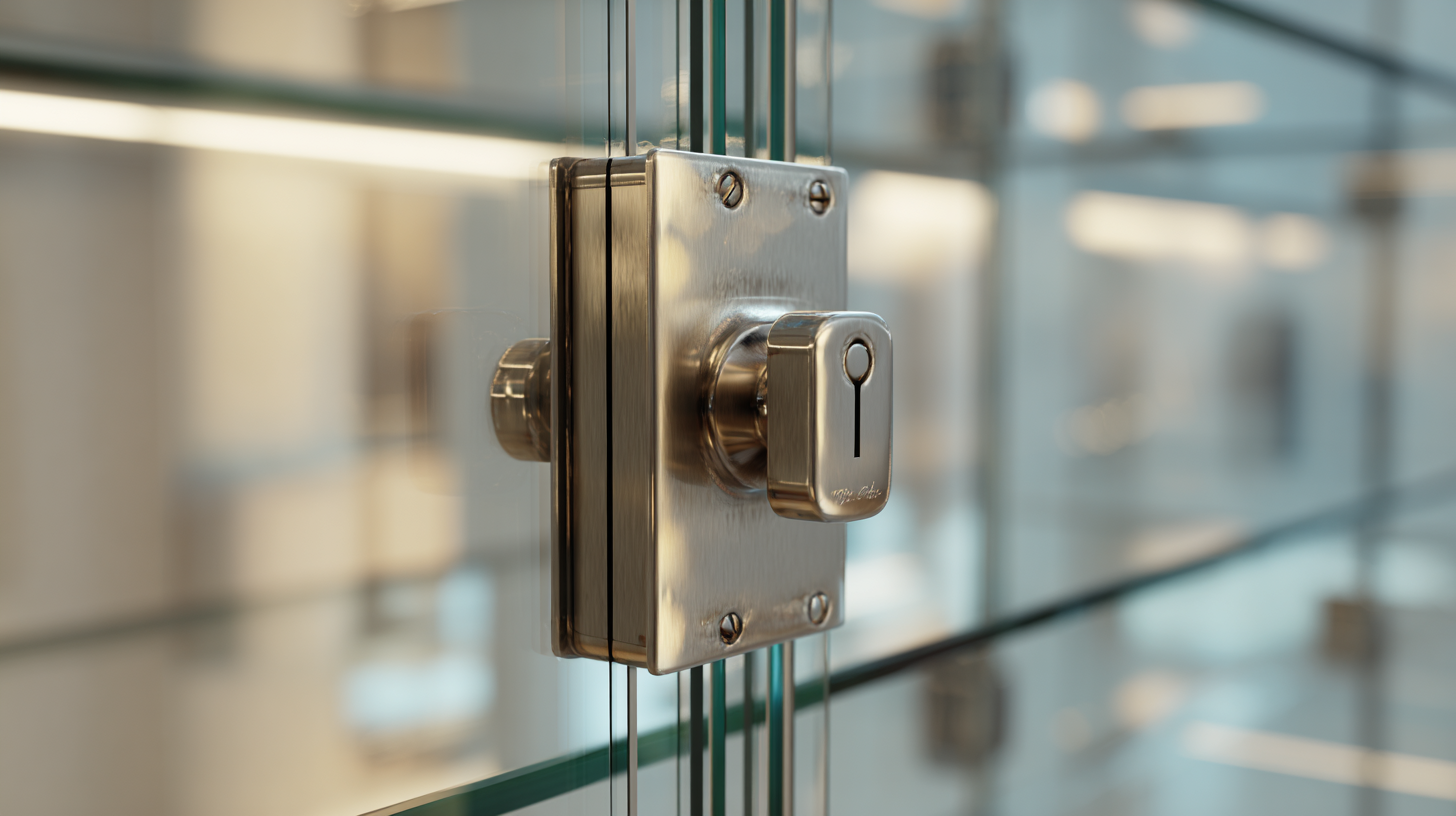

• Glass display cases: Special glass door locks are used here that avoid heavy mechanical loads on glass surfaces.
• Sliding doors: Hook-bolt locks or special mechanisms integrated into the track are suitable for sliding door systems.
• Tambour cabinets: These require locks that can effectively block the roller mechanism.

Digital cabinet locks: Smartphone and transponder as modern keys

Digital cabinet locks raise security and administration to a new level while relieving the burden on administration. In combination with BlueID users benefit from numerous advantages:

• Mobile access via Bluetooth Low Energy and NFC: The smartphone or transponder becomes the digital key, without the overhead of classical key management.
• Cloud-based access management: Permissions can be created, adjusted, or revoked within seconds, across locations.
• Offline-capable credentials: Time- and area-based access rights are stored cryptographically on the end device, access is possible even without a permanent internet connection.
• Full auditability: Detailed event and access logs support compliance requirements and internal security policies.
• Open interfaces: Via APIs and SDKs, cabinet locks can be integrated seamlessly into existing apps, portals, or PropTech platforms, vendor-agnostic through standardized interfaces.
• Transponder compatibility: Existing badges (for example MIFARE DESFire) can be used in parallel for doors and furniture.
• Certified security: BlueID’s security architecture has been certified by the VDE Institute, a key trust factor for IT departments and compliance officers.
• Open security standards: These ensure greater interoperability and vendor independence, a crucial advantage when different furniture systems are in use.

A typical use case: In a modern office environment, employees automatically receive access rights for their personal locker as well as for defined cabinets with relevant project materials. Guests receive temporary access, without the need for a time-consuming key handover.

The technology behind digital cabinet locks

The latest generation of digital cabinet locks is based on sophisticated technology:

Communication modules: Modern locks feature BLE (Bluetooth Low Energy), NFC (Near Field Communication), or RFID modules. BLE enables communication over several meters, while NFC and RFID enable contactless data exchange over short distances. Many systems support multiple technologies in parallel to accommodate different credential types.

Power supply: Digital cabinet locks are usually battery-powered. Advanced models use energy-saving technologies such as deep-sleep modes, optimized wake mechanisms, and efficient communication protocols to maximize battery life. The latest developments also integrate energy-harvesting technologies that gain additional energy from the environment (light, motion).

Encryption: Security starts with data transmission. Modern digital cabinet locks use advanced encryption algorithms such as AES-256 to protect communication between the lock and the credential. In addition, cryptographic authentication methods are used to reliably verify the authenticity of access permissions.

Integration into overarching access systems

The real added value of digital cabinet locks unfolds through seamless integration:

Unified access management: Digital cabinet locks can be integrated into the same management platform that also controls doors, gates, and elevators. This enables holistic access management from a single source.

Automated workflows: Permissions for cabinet locks can be assigned dynamically and rule-based. For example, employees automatically receive access to lockers in their department, temporary employees get time-limited permissions, and managers can receive extended rights.

Real-time monitoring: Networked cabinet locks can report their status to the management system in real time, including battery status, opening events, and possible tampering attempts.

Practical selection and installation guide: 7 steps to the right cabinet lock

1. Define the usage profile

Fixed or rotating users? Individual or shared use? What security level is required?

2. Check furniture properties

Door or drawer? Material (wood, metal, glass)? Material thickness? Does a hole already exist (measure diameter), or must one be drilled? Note left-/right-hand configuration.

3. Choose the appropriate form factor

• For quick retrofits: surface-mounted lock
• For premium aesthetics: mortise lock
• For standard drawers/doors: cam lock
• For tall doors/multipoint locking: rod lock

4. Define the mode of operation

Mechanical (key), PIN code, RFID/transponder, or smartphone. Practical tip: For frequent user changes, RFID/smartphone is recommended; for fixed users, a mechanical solution is often sufficient.

5. Determine technical parameters

Hole size (e.g., 19 mm), cam length/offset, bolt throw, required backset, compatible rosettes/fittings.

6. Plan authorization and key structure

Keyed alike for group use, keyed different for individual compartments, optional master key for emergency access. For digital systems: define roles, time profiles, and validity windows.

7. Professional installation and commissioning

• Mechanical: precise drilling, suitable mounting hardware, smooth cam operation.
• Electronic: reliable power supply (battery/lithium pack), well-thought-out battery maintenance plan, careful initialization and integration into the overarching access management system.

Important technical specifications

When selecting a cabinet lock, consider the following technical factors:

Material thickness: The thickness of the furniture front largely determines which lock can be used. For materials under 10 mm, special versions are often required. For electronic locks, also check whether there is sufficient space for the battery compartment.

IP protection class: In humid or dusty environments (outdoor areas, swimming pools, industrial settings), cabinet locks with an appropriate IP rating (e.g., IP44 or higher) should be chosen to ensure long-term functional reliability.

Operating temperature range: For outdoor applications or non-air-conditioned rooms, the guaranteed operating temperature range is an important selection criterion. Electronic locks may have functional limitations at extreme temperatures, particularly regarding battery life.

Emergency opening options: Every electronic cabinet lock should have a well-designed emergency opening concept, be it via mechanical bypass, external power supply, or a special administrator access.

Recommendations for professional installation

Proper installation is crucial for long-term functionality and security:

• Use precise drilling templates to ensure exact positioning and correct diameters
• For electronic locks, ensure sufficient distance from metallic structures that could impair radio technologies
• Tighten fasteners with the correct torque to avoid material damage
• Use special drilling and fastening techniques for coated panels or composite materials
• For electronic systems, plan and implement cable routing carefully and professionally

Security, data protection, and compliance requirements

• Mechanical security: Use high-quality cylinders with sufficient combination diversity, tamper-resistant escutcheons, and appropriate screw security. Particularly sensitive areas require high-grade, pick-resistant systems.
• Electronic security: End-to-end encrypted credentials, cryptographically signed keys, reliable whitelist/blacklist mechanisms, and well-designed role-based access rights ensure the highest digital security.
• Data protection (GDPR): Minimize personal data to what is necessary, implement transparent logging mechanisms, and define appropriate retention periods. Role-based and multi-tenant systems help clearly delineate responsibilities.
• Operational resilience: Offline-capable credentials ensure smooth operation even during network outages; emergency opening options and defined fallback processes should be part of the operational handbook.

Comprehensive security concepts for modern requirements

The security of contemporary cabinet lock systems encompasses multiple dimensions:

Physical security: Digital locks must also be mechanically robust. Material quality, protection against vandalism, and tamper-resistant design are essential factors. High-quality systems feature intelligent mechanisms that detect and log tampering attempts.

Cryptographic security: Modern digital cabinet locks implement current cryptographic standards, including:

• Secure key exchange procedures
• Challenge-response authentication
• Rolling code technology against replay attacks
• Cryptographically signed permissions

Data protection measures: Beyond legal aspects, technical precautions are essential:

• Strict data minimization in logging (record only necessary events)
• Automatic deletion of data after defined retention periods
• End-to-end encrypted data transmission and storage
• Pseudonymization of user data wherever possible

Industry-specific compliance: Depending on the application, additional requirements apply:

• Healthcare: patient data protection, medication security (e.g., controlled substances cabinets)
• Financial sector: retention obligations, regulatory requirements for asset custody
• Public authorities: official security guidelines, special protection for citizen data

Total cost of ownership (TCO) and return on investment

• Costs for lost keys are eliminated with mobile access solutions, including the expenses for required cylinder replacements.
• Employee onboarding and offboarding become significantly more efficient: access rights can be granted or revoked within seconds.
• Central administration saves on-site time; cross-site operation is significantly simplified.
• High scalability: Start with a few cabinets and expand the system as needed without technical discontinuities.

As a rule of thumb: From moderate user turnover or multiple locations onward, digital cabinet locks usually pay for themselves within a few quarters through reduced process costs and increased security.

Detailed cost analysis of digital vs. mechanical systems

A sound TCO assessment should include the following factors:

Acquisition costs:

• Mechanical systems: per lock about 20–100 EUR, depending on quality and security level
• Digital systems: per lock about 150–500 EUR, depending on feature set and degree of integration

Installation and setup costs:

• Mechanical systems: installation effort, setup of key management
• Digital systems: installation, system configuration, integration into the existing IT landscape

Operating costs over 5 years:

• Mechanical systems: key replacement (annual loss rate approx. 10–30 %), cylinder replacement after security incidents, manual administrative effort
• Digital systems: battery replacement, software updates, cloud hosting, significantly reduced administrative effort

Personnel costs:

• Mechanical systems: time for key issuance/return, handling lost keys, physical presence required
• Digital systems: centralized administration, largely automated processes, remote management capabilities

A typical calculation for a mid-sized company with 100 cabinet locks over five years shows:

• Mechanical solution: higher personnel and administrative costs, rising costs with increasing staff turnover
• Digital solution: higher initial investment, but significantly lower total costs from the third year of operation

Measurable added value of digital solutions

The return on investment (ROI) can be demonstrated with concrete metrics:

• Time savings: reduction of administrative processes by an average of 70–80%
• Security gains: demonstrable reduction in loss reports and unauthorized access
• User satisfaction: higher acceptance and fewer support requests thanks to intuitive operation
• Resource efficiency: dynamic allocation enables fewer cabinets/lockers to serve more users

System integration into existing infrastructures

• Unified credential: One badge or smartphone for doors, gates, elevators, lockers, and cabinets.
• Open interfaces: Connect cabinet locks with identity management systems, room booking solutions (e.g., for locker reservations), CRM platforms, or visitor applications.
• Automated authorization workflows: Key handovers can be fully digitized, for example at contract start, shift changes, or visitor registration.

Modern integration scenarios and use cases

Integrating cabinet locks into the existing IT landscape opens up a wide range of new possibilities:

Connection to identity providers
By linking with identity providers (such as Active Directory, Azure AD, or LDAP), access permissions for cabinet locks can be derived automatically from existing organizational structures. If an employee changes departments, their access rights to corresponding cabinets change automatically.

Smart building integration
In intelligent buildings, cabinet locks can communicate with other systems:

• Workplace management: automatic assignment of lockers near the booked workplace
• Room booking systems: temporary access to material cabinets in reserved conference rooms
• Building technology: intelligent adjustment of lighting and HVAC based on the use of cabinets or locker rooms

Mobile app integration
Integrating cabinet locks into multifunctional apps creates new service offerings:

• Navigation assistance to the assigned locker
• Push notifications for forgotten items
• Digital receipts for withdrawn materials or tools
• Status messages about available capacity or upcoming maintenance

Avoiding common pitfalls

• Incorrect hole size or unsuitable cam length: Measure precisely before ordering, including accurate determination of material thickness.
• Missing battery management: Define a reliable system of reminders and buffers for electronic locks.
• Overly rigid master key system: Use flexible digital permissions in areas with changing users.
• Isolated standalone solutions: Integrate cabinet locks directly into the overarching access management, instead of operating separate systems in parallel.

Project planning and risk minimization

When implementing cabinet lock systems, pay particular attention to the following aspects:

Plan a pilot phase
Before large-scale rollout, a test phase with representative users and typical use cases is recommended. This enables:

• Early detection of potential integration issues
• Adaptation of workflows and processes
• Collection of valuable user feedback for system optimization
• Verification of expected benefits and ROI calculations

Thoughtful training concept
Successful use of digital cabinet locks depends heavily on acceptance among administrators and end users:

• Specific administrator training for efficient system management
• Targeted onboarding for different user groups
• Clearly defined support channels for arising issues
• Comprehensive documentation for new employees

Sustainable operational concepts
For long-term success, the following factors are crucial:

• Clearly defined responsibilities for administration and support
• Regular maintenance and update plans
• Well-considered expansion concepts for growing requirements
• Meaningful KPIs for continuous improvement

Technical differences compared to door locks and block locks

A cabinet lock is designed specifically for furniture and is characterized by a shallower installation depth and adapted bolt mechanism, while door locks must meet higher requirements for burglary resistance, panic function, or fire protection. The term block lock in the door sector denotes a design with a massive bolt, whereas in the furniture sector, compact bolt or cam mechanisms are predominantly used.

Technical differences in detail

The differing requirements for door and cabinet locks are reflected in a number of technical characteristics:

Standards and norms
Door locks are subject to stricter standards:

• DIN EN 1627–1630 for burglary resistance of doors
• DIN EN 179 and 1125 for emergency exits and panic doors
• Fire protection requirements per DIN 4102 or EN 13501

For cabinet locks, there are fewer mandatory standards, with DIN 4547 relevant for basic requirements and test procedures.

Design differences

• Door locks: more robust construction, larger bolts, defined resistance classes
• Cabinet locks: compact construction, reduced installation depth, optimized for thinner materials

Functional differences

• Door locks: often with multipoint locking, anti-panic function, self-locking mechanisms
• Cabinet locks: focus on ease of use, space-saving design, specific adaptation to different furniture types

Conclusion: Secure, flexible, digital: How to future-proof your cabinet locks

Whether for cabinets, lockers, or display cases: the right cabinet lock protects valuable contents, simplifies operational processes, and reduces long-term costs. Mechanical solutions provide solid baseline security for fixed users, but with rotating users, multiple locations, or special compliance requirements, digital systems have clear advantages. With BlueID, electronic cabinet locks, door components, and wall readers can be combined in a unified, VDE-certified system, including mobile access functionality, transponder support, offline capability, and versatile interfaces (APIs and SDKs).

Act proactively: seek expert advice or schedule a live demo, we will show you how cabinet locks can be integrated seamlessly into a holistic access concept.

Outlook on future developments

The world of cabinet locks continues to evolve:

Biometric authentication
Fingerprint, facial recognition, and other biometric methods could make access to furniture even easier and more secure in the future.

IoT integration and predictive maintenance
By integrating into the Internet of Things (IoT), cabinet locks are becoming intelligent sensors that not only grant access but also recognize usage patterns, proactively report maintenance needs, and interact with other systems.

Sustainability focus
Innovative approaches for energy-autonomous locks with energy harvesting, environmentally friendly materials, and durable designs are gaining importance.

Open security standards
The future belongs to open, standardized security solutions that ensure interoperability across manufacturers and technologies, a field in which BlueID is already setting leading benchmarks.

FAQ about cabinet locks

What types of cabinet locks are there?‍

The most common variants are cam locks (cylinder cam locks), mortise locks, surface-mounted locks, rod/multipoint locks, and electronic versions with PIN code, RFID, or smartphone integration.

Which is better: mortise or surface-mounted lock?‍

Mortise locks offer visual advantages and are protected within the material but require precise milling. Surface-mounted locks are excellent for uncomplicated retrofits and thinner materials, they are more visible externally but significantly easier to install.

Can existing cabinets be retrofitted digitally?‍

Yes, absolutely. Many electronic cabinet locks are designed specifically for retrofitting. Check the hole diameter in advance.
